Mô tả sản phẩm

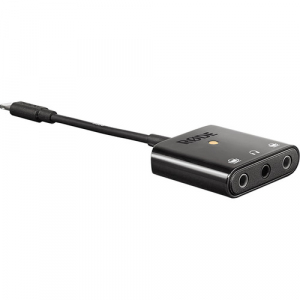

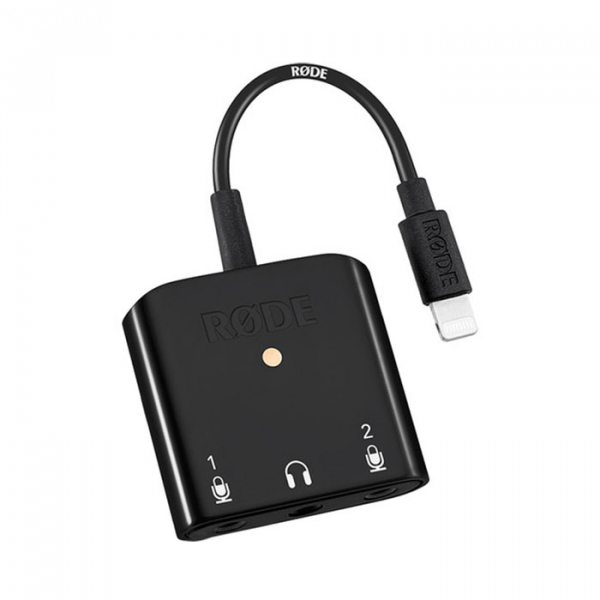

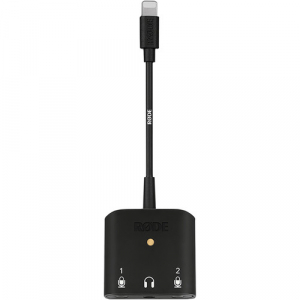

Swiftly record two-person interviews, podcasts, and vlogs straight to your iPhone, iPad, or iPod with the RODE SC6-L ultracompact 2x2 Lightning audio interface and a pair of TRRS-equipped microphones (mics available separately). Pocket-friendly and bus-powered, the SC6-L is perfect for keeping your setup small and simple while maintaining quality and enjoying app-based optimization.
At one end of the SC6-L, you'll find two 3.5mm TRRS jacks to accept signal from microphones such as the Rode smartLav+ lapel mic, Rode VideoMics (in conjunction with TRRS adapters), and third-party microphones with the appropriate TRRS outputs. Between the two TRRS jacks is a 3.5mm headphone output for monitoring the incoming signal to make sure it is clean and free of distortion.
At the other end of the interface, a short cable is terminated with a Lightning connector, which connects directly to your iOS mobile device to facilitate convenient and clear recording at digital resolutions up to 24-bit / 48 kHz, making it a broadcast-quality unit.
Use the SC6-L with the Rode Reporter app to change preamp gain, switch between summed stereo or dual-mono record modes, and turn direct monitoring on or off, all from your Apple mobile device (iOS 11 or later required). Alternatively, you can use the SC6-L with other audio/video apps such as the onboard Camera app, GarageBand, Voice Memos, and more.
Easy Two-Person Recording
Strapped with the SC6-L and a couple TRRS microphones (available separately), you can easily capture two-person interviews, podcasts, and vlogs to your Lightning-equipped Apple mobile device in record time.
Dual 3.5mm TRRS Mic Inputs
Separate 3.5mm TRRS mic inputs are provided on the SC6-L to accommodate two TRRS microphones such as the Rode smartLav+ lapel mic, Rode VideoMics (in conjunction with TRRS adapters), and third-party microphones with the appropriate TRRS outputs.
Real-Time Headphone Monitoring
Connect earphones or headphones to the 3.5mm headphone port to monitor your input signal or the playback from a recording.
No Batteries Required
Since the SC6-L is bus powered through the Lightning connection to your iPhone, iPad, or iPod, no batteries are needed.
App-Based Optimization
When using the SC6-L with the Rode Reporter app, you can adjust the mic preamp gain, choose between summed stereo and dual-mono recording, and enable/disable direct monitoring from your Apple mobile device.
Thông số kỹ thuật
Rode SC6-L Specs
| Form Factor |
Mobile |
| Display |
<i>None</i> |
| Channels of I/O |
<b>Analog:</b><br />2 Inputs / 2 Outputs |
| Max Sample Rate/Resolution |
48 kHz / 24-Bit |
| Number of Mic Preamps |
2 |
| Input Level Adjustment |
<b>1 x </b>via Software |
| Solo/Mute |
<i>None</i> |
| Pad |
<i>None</i> |
| High-Pass Filter |
<i>None</i> |
| Expansion Slots |
<i>None</i> |
Connectivity
| Analog Audio I/O |
<b>2 x </b>1/8" / 3.5 mm TRRS Unbalanced Mic Input<br /><b>1 x </b>1/8" / 3.5 mm TRS Unbalanced Headphone Output |
| Phantom Power |
<i>None</i> |
| Digital Audio I/O |
<i>None</i> |
| Host Connection / USB |
<b>1 x </b>Lightning |
| USB (Non-Host) |
<i>None</i> |
| Sync I/O |
<i>None</i> |
| Network I/O |
<i>None</i> |
| MIDI I/O |
<i>None</i> |
| Wireless Connectivity |
<i>None</i> |
| Memory Card Slot |
<i>None</i> |
Performance
| Frequency Response |
20 Hz to 20 kHz |
Digital Audio
| Sample Rates |
44.1 / 48 kHz |
| Sample Rate Conversion |
<i>None</i> |
| Bit Depths |
24-Bit |
| Sync Sources |
Internal |
Compatibility
| OS Compatibility |
iOS 11 or Later |
| Included Software |
<i>None</i> |
| Mobile Device Compatibility |
iPhone <br />iPad <br />iPod Touch |
| Required Hardware |
Available Lightning Port |
Power
| Power Requirements |
Lightning Bus Power |
Physical
| Dimensions |
4.7 x 1.6 x 0.4" / 120.2 x 40 x 11 mm |
| Weight |
0.6 oz / 16.0 g |
